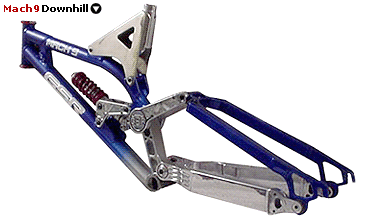

Mach 9 Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
Two National Titles in 2000
Longest travel downhill bike in the world
9"-11" travel with 2.0" stroke shock and 11"-14"
travel with 2.75" stroke shock
Rear swingarm fits 3" tire with ample mud clearance
Adjustable bottom bracket and steering angles
Pull shock design provides constant feel over full range of
travel without pedal feedback
Regressive-to-linear design with built-in sag
Oversized aluminum frame 6061-T6
29 CNC machined parts
Interlocking FSR bearing pivot (patent pending) for easy
removal and maintenance
Standard Hayes (8" rotor) rear disc mount |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
![](images/bike_convict.gif) |
![](images/white.gif) |

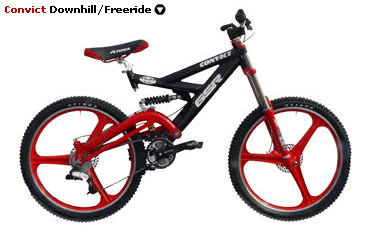

Convict Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
6.8" of travel with RockShox or 7.5" with upgrade to Fox Shox
Box designed CNC aluminum link, 6061-T6
Large bearing single pivot for easy maintenance
All cable guides are pass through for disc brake housing and
full housing for derailleurs
Use 63mm fork to 125mm. (RockShox Psylo set at 110 mm)
Works with 24" and 26" wheels
24" x 3" and 26" x 2.7" tire clearance
Comes standard with international disc brake mounts
Low standover height - 15.5" at top tube
22.5" top tube length
Fits anyone 5.5" to 6.4"
Adapts to 4" or 5.5" of travel
Accepts 3"-8" fork |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
![](images/bike_hooligan.gif) |
![](images/white.gif) |

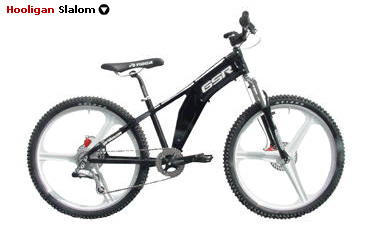

Hooligan Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
Monocoque frame construction for stiffness. 3.9 lbs.
Square tubing in rear for stiffness and strength
All cable guides are pass through for disc brake housing and
full housing for derailleurs
Use 63mm fork to 125mm.
(RockShox Psylo set at 110 mm in photo)
14" frame with 21" top tube length.
6" long reinforced head tube, 1 1/8" for headset
27.0 seat post size, can use front derailleur
Fits anyone from 5.0" to 6.2" tall
Can be used for Trials riding due to low standover height and
also light enough for cross country with 63mm fork
International disc brake mounts and replaceable
dropout standard
Standard Color: Fire Red, shown in custom Gloss Black |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
![](images/bike_raige.gif) |
![](images/white.gif) |
Raige Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
Oversized ultralight chromoly tubing - 3.5 to 3.7lbs.
X-Country racing frame is designed for 80mm forks
Frame geometry is 71.5/73.5 degrees with
2001 RockShox SID SL
Bottom Bracket height 12.0" (with 80 mm fork)
Chainstay length: 16.7"
Head tube size: 1 1/8"
Seat post size: 27.0 mm
Classic style brazing throughout for craftsmanship and
added strength
Lightweight socket dropouts standard
Sizes: 13.5, 15.5, 17.5, 19, 21"
Standard Powder coat Electric Blue
Custom paint available at extra but reasonable charge |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
Raige One Speed (not pictured) |
|
![](images/white.gif)
A cross country bike without all those pesky gears
Convertible available: derailleur tab & braze-ons
w/track dropouts
Frame geometry correct with long travel forks |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
![](images/bike_road.gif) |
![](images/white.gif) |

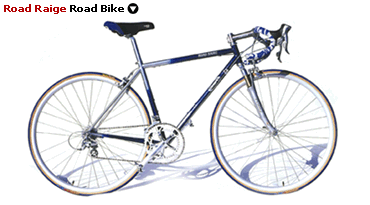

Road Raige Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
Oversized ultralight cro-mo tubing - 3.5 to 3.7lbs.
Classic road racing geometry for today's lightweight
carbon forks
Lightweight socket dropouts standard
Available in 1" or 1 1/8" head tube
Available in 7 sizes from 50cm to 62cm
Standard Color: Electric Blue |
![](images/white.gif) |
![](images/white.gif) |
![](images/white.gif) |
![](images/bike_forza.gif) |
![](images/white.gif) |

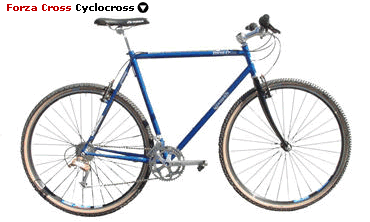

Forza Cross Specifications |
![](images/bike_butn.gif) |
![](images/white.gif)
Ultralight Italian tubeset - 3.6 lbs.
Steep European geometry - 72 degree head tube angle,
73 degree seat tube angle
Lightweight socket dropouts standard
Converts to road bike angles with road fork -
one frame does it all
Five frame sizes available - 51, 53.5, 56.5, 58, 60cm
Standard Color: Electric Blue
Custom paint available at extra but reasonable charge |
